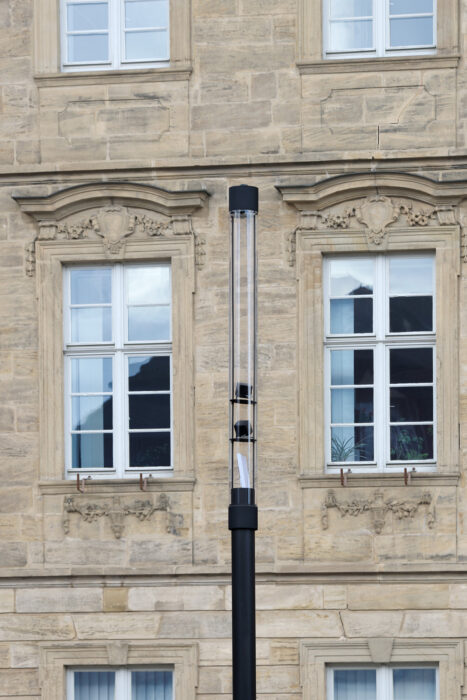

Light Column Canna System (Configurable)

Description

The Canna System light column can be individually configured. The construction is open, providing numerous possibilities: colored orientation lights, facade or object lighting can be integrated. The Canna System can also serve as Wi-Fi access points for wireless communication devices, as a carrier for control units, or as an e-charging station. With this model, Bergmeister Leuchten has created an option for cities to develop into smart cities.

Technical data

Material: Aluminium, Ø 200 mm: Ø 230 mm: Height 2.50 m – 8.00 m (other heights available on request) | optional steel, hot-dip galvanized | Lamp glass made of PMMA Ø 200 mm/230 mm, clear/partially satin | surface painted
Colour: DB703, DB702, DB701, other colors available on request
Column: Ø 200 mm:
LED Module: Type BLK4-4/5/6/7/8S/C
Type BLK6-4/5/6/7/8 S
Column: Ø 230 mm:
LED Module: Type BLK6-4/5/6/7/8 S
Optics: PMMA, clear or satin
Colour Temperature: 2200K, 2700K, 3000K | optional: 1800K, 4000K RGB(W)
Power Rating: 15.3 – 38.7W / 30.6 – 66.8W
Ballast: “OSRAM OT 4DIM series (AstroDim, StepDIM, DALI) optional: DALI-2 + DC-compatible
Other configurations available upon request”
Protection Rating: Housing IP65 | LED Module IP67
Protection Class: I and II
Standards: CE | LED Module and LED Driver ENEC certified
