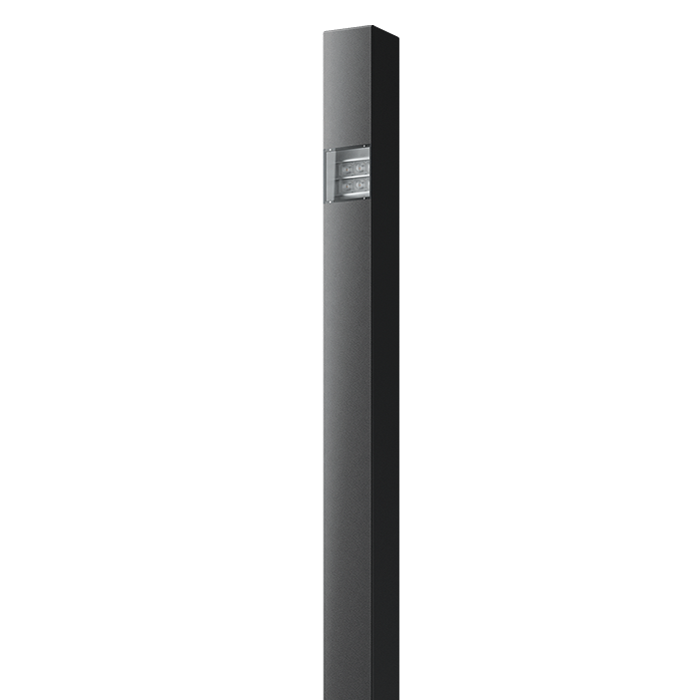

Lichtstele Q 200 LS

Technical data

Material: Steel 200 x 200 mm, hot-dip galvanized | luminaires glass made of PMMA, clear | surface lacquered
Colour: DB703, DB702, DB701, other colours available on request
LED module: BLK3-7 S fixed | BLK3-3/4/5/8 S adjustable
Optic: PMMA, satined
Colour temperature: 2200K, 2700K, 3000K | optional: 1800K, 4000K
Power rating: 11.4 – 35.4W
Electronic ballast: OSRAM OT40 4DIM (DALI, reduction circuit, AstroDim)
Protection rating: Housing IP65 | LED module IP67
Protection class: I and II
Standards: CE | LED module and LED driver ENEC-certified
