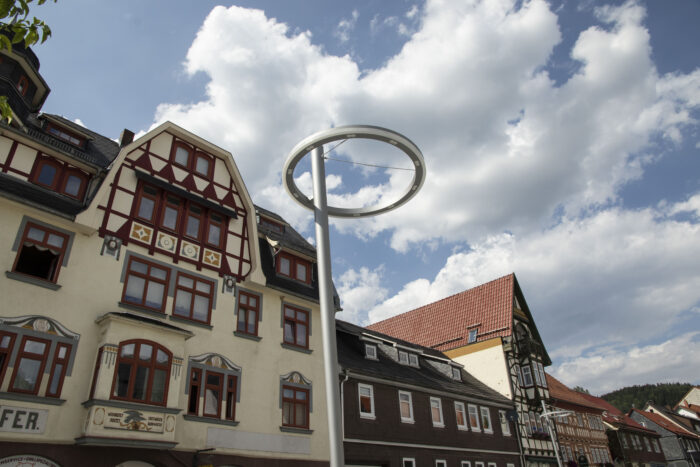

Mast luminaires Mehlis 1800 LS

Technical data

Material: Ø1800 mm luminaire head and pole connection made of aluminium | steel system pole, hot-dip galvanized + lacquered | ring cover for decorative light ring made of PMMA satined | guy wires made of stainless steel with tensioning devices | surface lacquered
Colour: DB703, DB702, DB701, other colours available on request
LED module: “10x type BLK2-5/6/8 C or S
LED strip: Osram LINEARlight FLEX Protect in light channel (white or RGB)
Optic: PMMA, clear or satined
Colour temperature: 2200K, 2700K, 3000K | optional: 1800K, 4000K
Power rating: 145W
EVG: constant current driver for LED modules (350mA) and constant voltage driver 24V for LED strip, DALI dimmable
Protection rating: Housing IP65 | LED module IP67
Protection class: I and II
Standards: CE | LED strip and LED power supply ENEC certified
